SetWindowDisplayAffinity (typically with WDA_EXCLUDEFROMCAPTURE) is a well-known way to keep a window visible on the desktop while excluding it from most screen-capture and recording APIs.

This series has three parts. This article is part 1:

• Part 1 (this page): SetWindowDisplayAffinity — mechanism & detection
• Part 2: Visual-layer hiding — mechanism & detection
• Part 3: BitBlt-style “super screenshot” approach

The user-mode API enters the kernel at win32kfull!NtUserSetWindowDisplayAffinity; core logic lives in SetDisplayAffinity. Simplified flow:

NtUserSetWindowDisplayAffinity
  └─ SetDisplayAffinity
       ├─ ComposeWindowIfNeeded
       ├─ InternalSetProp / InternalRemoveProp("SysDispAffinity")
       └─ ChangeWindowTreeProtection
            └─ ProtectWindowBitmap
                 ├─ ChangeWindowBitmapOwner
                 └─ GreProtectSpriteContent
                      └─ DwmAsyncUpdateSprite → dwm.exe

DwmAsyncUpdateSprite ultimately delivers an LPC message to the dwm.exe process. Aside from updating the SysDispAffinity property on the window (tagWND), other kernel-side changes are relatively few. Property atom indices also shift between Windows versions, so detecting hidden windows from kernel state alone tends to be less stable and less portable. Takeaway: if the durable state lives in DWM, scan dwm.exe rather than betting on win32k-only signatures.

Analysis of dwmcore.dll shows separate paths for capture and direct display, corresponding to CCaptureRenderTarget and CDDisplayRenderTarget, respectively. On closer inspection, anti-capture logic lives almost entirely in dwm.exe; the kernel plays a limited role.

If a window is hidden from capture, that state should show up in DWM’s CCaptureRenderTarget composition path. dwm.exe loads many modules; we started with dwm.exe, dwmcore.dll, dwmredir.dll, and uDWM.dll.

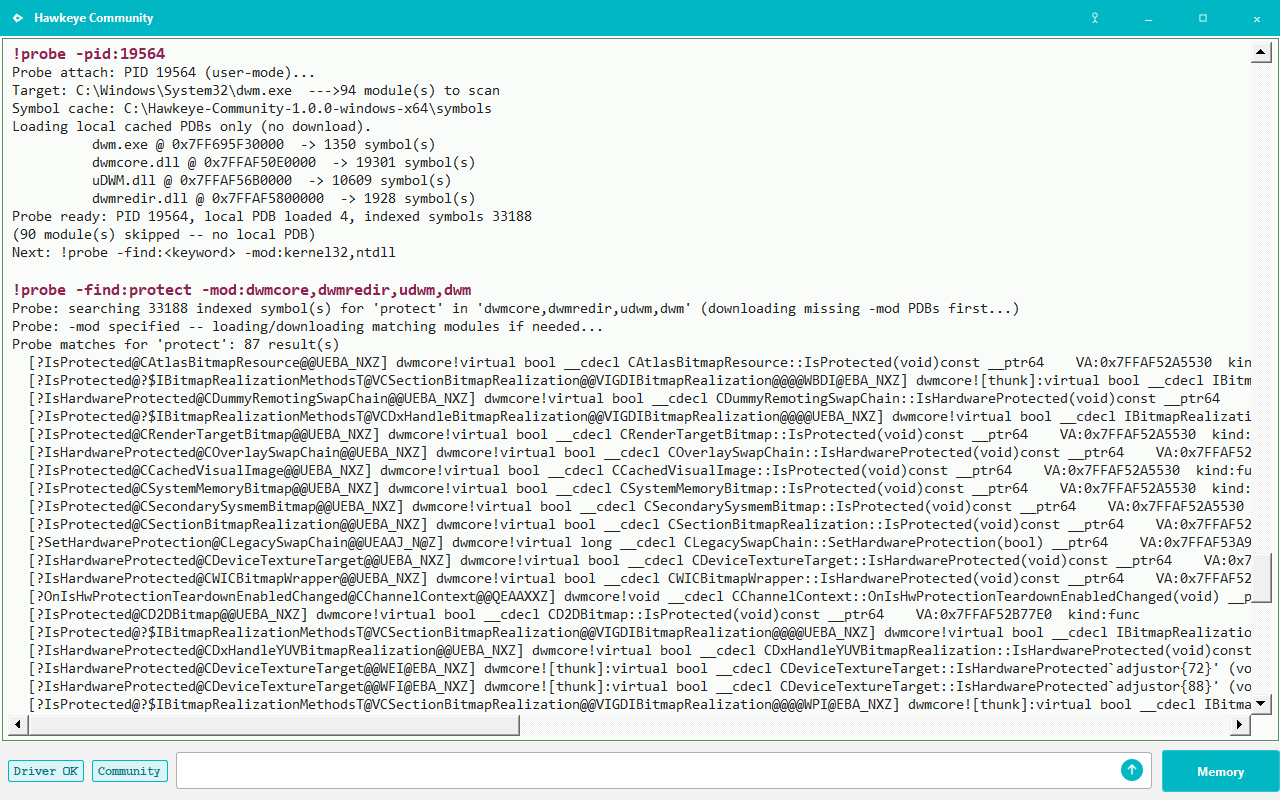

In Hawkeye Community, attach to dwm.exe with !probe -pid:<dwm_pid>, then search for protect across those modules: !probe -find:protect -mod:dwmcore,dwmredir,udwm,dwm

Strongest candidates in dwmredir — two functions tied to window content:

• CWindowContext::HasProtectedContent
• CWindowContext::NotifyProtectionChange

The names are explicit: one tests whether window content is protected; the other notifies the composition pipeline when protection changes. DWM also exposes many IsProtected and SetHardwareProtection symbols worth tracking separately.

Disassembly of dwmredir!CWindowContext::HasProtectedContent is straightforward:

So CWindowContext carries a flag DWORD at offset +0x114; bit 6 marks protected content (consistent with anti-capture semantics).

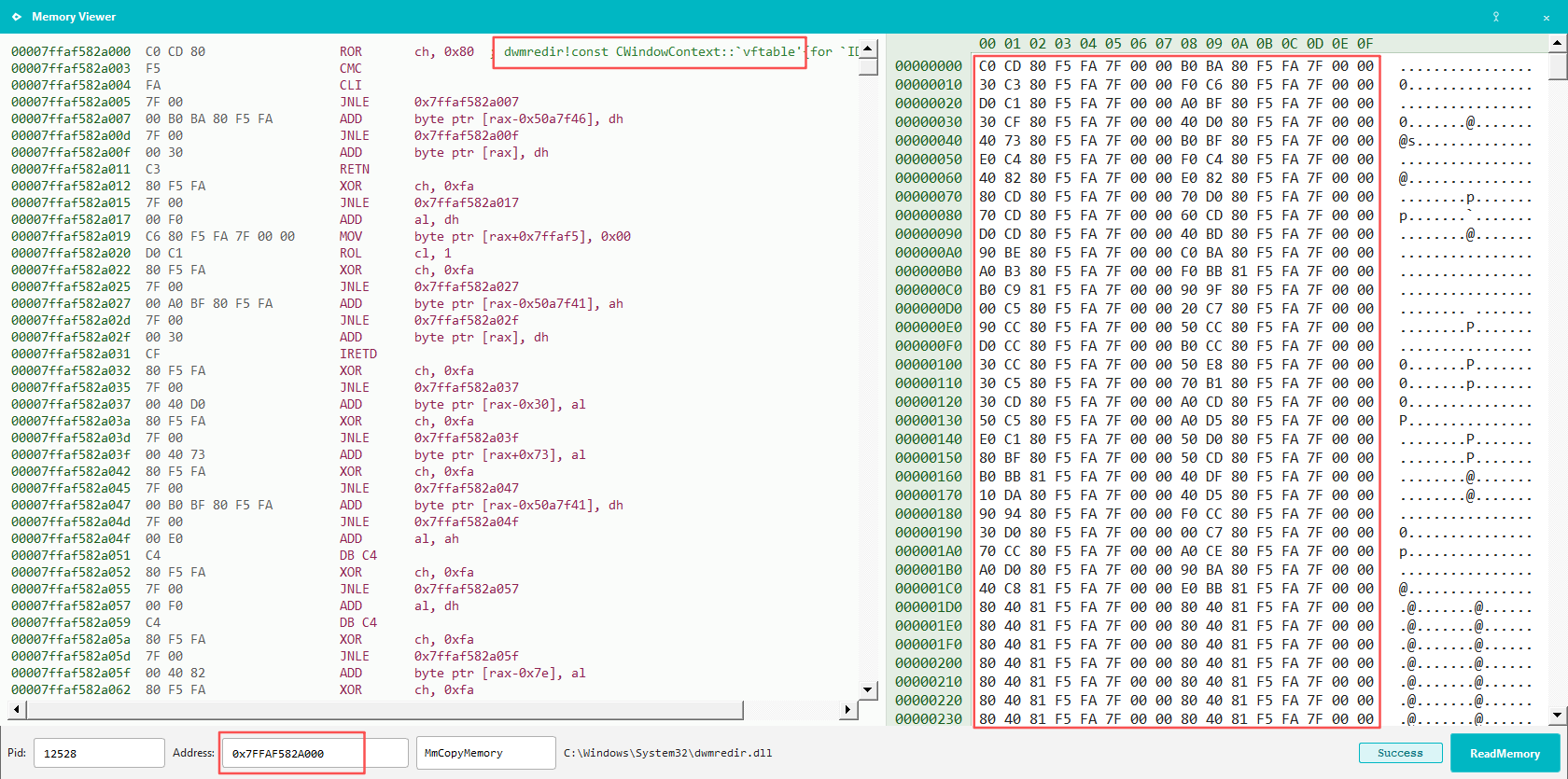

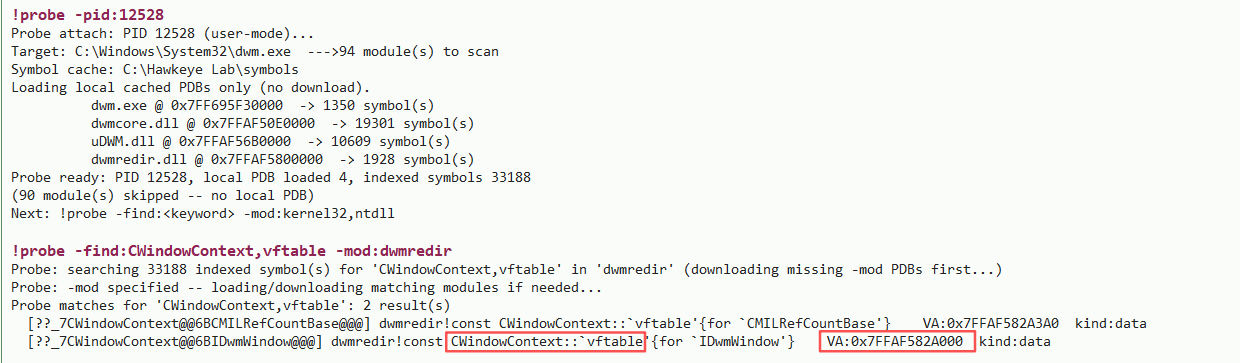

When locating CWindowContext instances, note the class has two vftables. Use the one for IDwmWindow (example from build 26100 below):

Experiment: call SetWindowDisplayAffinity(WDA_EXCLUDEFROMCAPTURE) on a window, then search for that HWND value in dwm.exe with Cheat Engine to land on the matching CWindowContext object.

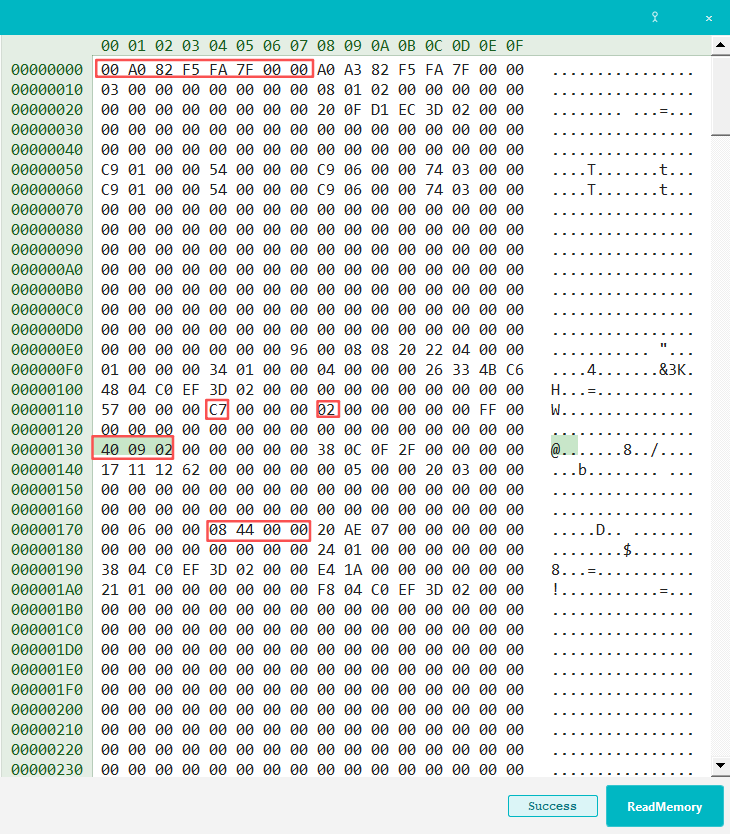

First 8 bytes of the object are the vftable pointer. Exact offsets (such as +0x114 on build 26100) move between Windows builds, but the combination vftable + protection bit + HWND/PID has been stable enough on Windows 10 and 11 to build detection around. Treat figure values as one validated snapshot, not constants to paste into a scanner.

Window composition for capture exclusion lives mainly in the DWM process and is largely decoupled from the kernel path, so scanning dwm.exe is a practical detection surface.

A workable scheme mirrors the manual CE steps above, but automates layout discovery:

• Resolve the IDwmWindow vtable address from dwmredir.dll symbols (PDB).
• Scan dwm.exe read-write regions for pointers equal to that vtable.
• During calibration, enable anti-capture on a known window — Hawkeye uses its own main window via SetWindowDisplayAffinity — then select the matching object by vtable, protection bit 6, window kind, HWND, and owning PID.
• Record object-relative offsets for flags, kind, HWND, and PID; reuse them on later scans.

Absolute field offsets change between Windows versions and builds. Portability comes from anchoring on the vtable and running a one-time calibration on the target machine. The open-source Community build does this automatically: vtable from dwmredir.dll symbols, relative offsets learned during !hidden_windows -init. Window kind is filtered to 0x2 and 0x4 during scans even though 0x1 may appear in memory dumps.

The detection approach in this article is implemented in Hawkeye Community: !hidden_windows (run -init first) and the staging command !hidden_windows_sim. Validated on most Windows 10 and 11 systems we tested — not every build or configuration. The Community build resolves the CWindowContext / IDwmWindow vtable from dwmredir.dll at runtime, calibrates relative offsets for flags, kind, HWND, and PID during -init, then scans dwm.exe memory. No fixed +0x114-style constants are baked into the scanner.

Source: github.com/hawkeye-Leo/hawkeye-community
Binaries: GitHub Releases (latest)

Next in the series: Visual-layer hiding — mechanism & detection.
