This series has three parts. This article is part 2:

• Part 1: SetWindowDisplayAffinity — mechanism & detection
• Part 2 (this page): Visual-layer hiding — mechanism & detection
• Part 3: BitBlt-style “super screenshot” approach

Part 1 centers on CWindowContext and SetWindowDisplayAffinity. Visual-layer hiding instead marks composition nodes in dwmcore (CVisual) — a separate, and in some setups more flexible, anti-capture path.

A quick primer on DWM’s Visual model:

DWM maintains a global Visual tree in dwm.exe / dwmcore.dll. Each CVisual on the tree is a composition node; many top-level windows map to a subtree in this global Visual tree — the subtree root is often tied to an HWND, and child visuals underneath describe what that window looks like on the desktop. DWM blends these visuals into the final desktop frame based on window Z-order, node hierarchy, occlusion, and various flags. What you see on the monitor is essentially the result of how this global Visual tree is merged and trimmed.

So the smallest unit DWM actually manages is the Visual, not the window.

DWM cares more about Visuals than about which window or process owns them. Public research such as window_hijack shows that attaching a Visual created in one process to another process’s window passes only a few checks. The gate lives in:

win32kfull!NtUserCreateDCompositionHwndTarget
  └─ TestWindowForCompositionTarget

Once past that gate, composition continues without re-validating whether a Visual is abnormal — a fragile trust model from a defender’s perspective.

After digging into dwmcore, we find that each Visual maps to a CVisual object. CVisual derives from CResource. CWindowNode is a subclass of CVisual used for subtree-root visuals bound to a window handle.

Following the same symbol-hunt approach as part 1:

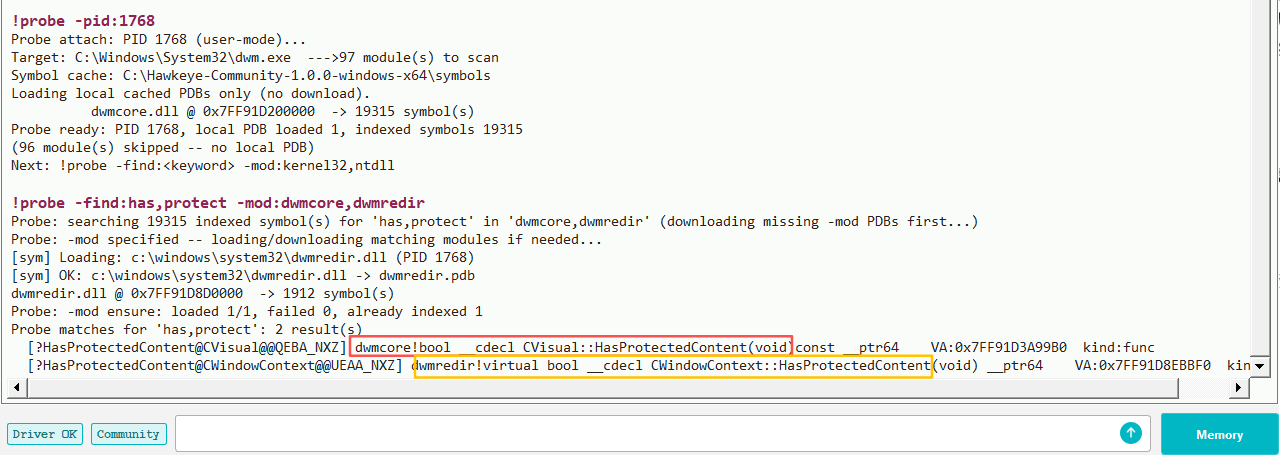

A joint search in Hawkeye Community finds two similarly named entry points:

• CWindowContext::HasProtectedContent (dwmredir) — part 1
• CVisual::HasProtectedContent (dwmcore) — this article

Same naming convention, different object type — useful when pivoting from DisplayAffinity research to Visual-layer hiding.

Disassembly of dwmcore!CVisual::HasProtectedContent is straightforward:

By analogy with part 1, bit 7 at offset +0x6A on a CVisual object is the protection flag to track.

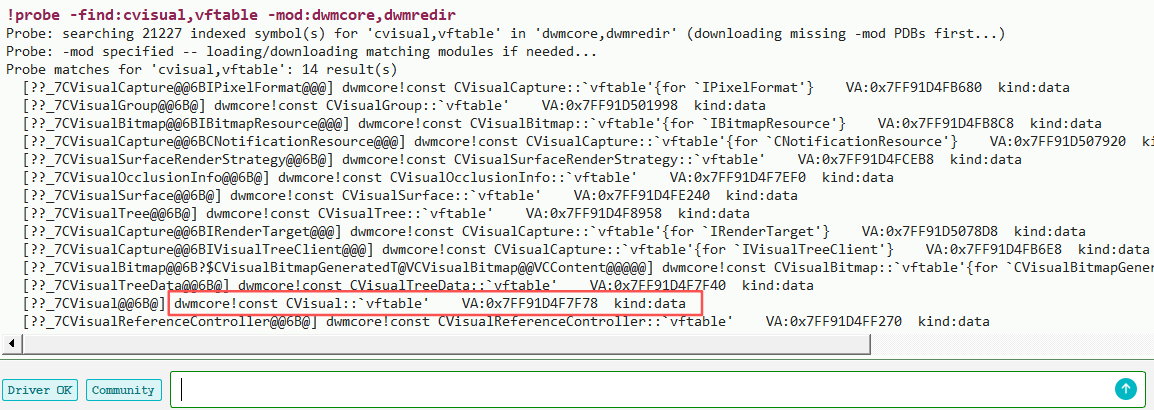

When locating CVisual instances, the first 8 bytes are the CVisual vtable pointer (example from build 26100 below):

On build 26100 the vtable pointer is at 0x7FF91D4F7F78.

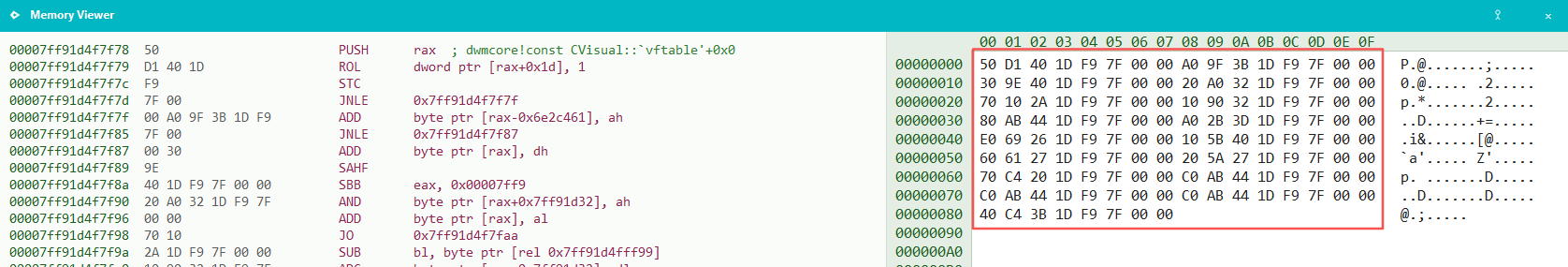

Searching for that value in Cheat Engine confirms that the first 8 bytes of a CVisual object are its vtable pointer, and that bit 7 at offset +0x6A is the anti-capture protection flag.

Vtable plus flag is not enough for triage. Part 1 yielded PID, window handle, and window kind directly from CWindowContext. A bare CVisual exposes less by default — attribution needs extra steps and build-to-build compatibility work.

Can we get the owning process PID from a Visual?

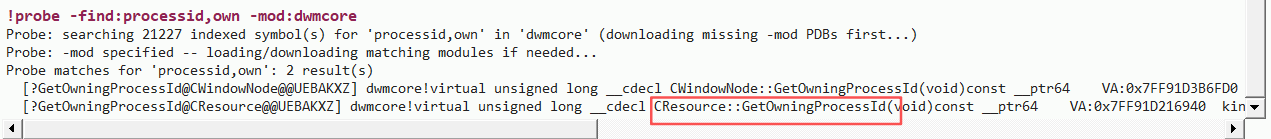

Yes. Since CVisual derives from CResource:

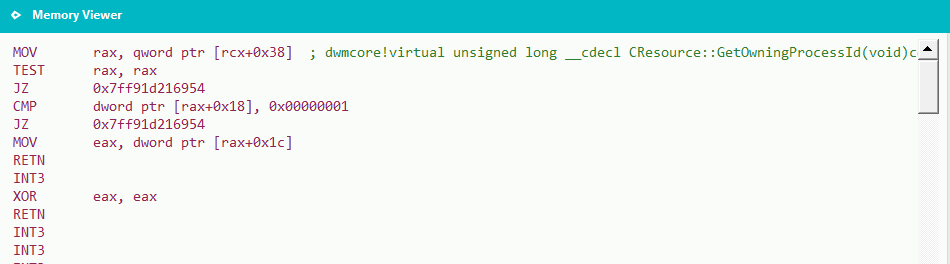

Disassembly of dwmcore!CResource::GetOwningProcessId:

The logic is straightforward. Resolve handle and PID field offsets from disassembly on the target build rather than hard-coding +0x38 / +0x1C from the figures.

With vtable, protection bit, HWND, and PID, a suspicious Visual can be tied back to a process for triage — the same end state as part 1, reached through a different object type.

Visual-layer anti-capture state lives on the DWM composition heap, largely decoupled from the DisplayAffinity / CWindowContext path, so scanning dwm.exe for protected CVisual objects is a separate detection surface.

A workable scheme mirrors the manual Cheat Engine steps above:

• Resolve the CVisual vtable address from dwmcore.dll symbols (PDB).
• Scan dwm.exe read-write regions for pointers equal to that vtable.
• Test bit 7 at the object-relative offset implied by HasProtectedContent disassembly.
• For each hit, attribute to an HWND (GetHwnd, with parent walk if needed) and owning PID (CResource::GetOwningProcessId or equivalent field reads).
• Cross-check against part 1’s !hidden_windows results when both paths may be in play.

Absolute field offsets change between Windows versions and builds. Portability comes from anchoring on the vtable and resolving helper offsets from symbols or instruction patterns on the target machine. Treat figure values as one validated snapshot on build 26100, not constants to paste into a scanner.

Part 1’s DisplayAffinity detection is implemented in Hawkeye Community as !hidden_windows (run !hidden_windows -init first) and the staging command !hidden_windows_sim. Visual-layer scanning described in this article is still research-only and is not shipped in the open-source Community build yet.

Readers can still reproduce every manual step here with Community tooling: attach to dwm.exe via !probe -pid:<dwm_pid>, load dwmcore.dll / dwmredir.dll symbols, and run the !probe -find: searches shown in the figures.

Source: github.com/hawkeye-Leo/hawkeye-community
Binaries: GitHub Releases (latest)

Next in the series: BitBlt-style “super screenshot” approach — open-sourced in Hawkeye Community.
